Product details

Transportation and storage

1. Steel corner is necessary at the touch point of the rope and the board box, so that can avoid damage of the box.

2. Support the mineral wool sound absorption board with wooden structure that is higher than 15cm when the board is put on the ground. The distance to the wall should be more than 40cm.

3. Please pay attention to the warnings on the box in transportation and storage.


Cycle and reutilization

Mineral fiber, the main raw material, contains recuperated slag, the organic fiber is recuperated newspaper. The recuperated materials do not contain any asbestos, formaldehyde and other venenous and noxious substance.


The scrape during manufacturing and old ceiling board can reused(the reusing rate can reach 79%) which decreased the builders rubbish and avoids the environment pollution.


Green production process

The production process accords with the standard of environmental protection. The main released substance during production process is steam.


Green application

The main function of mineral wool board is sound absorption and noise reduction which can help to ease oneself and abate the noise.

The mineral wool board can absorb and disassemble poisonous substance, increase the density of negative oxyanion effectively and help us to build a foresting cities.


Absorbing the excess moisture and improve the living environment.

The strong reflected ability can improve the indoor sunlight, protect the vision and ease oneself.


Energy saving and consume decreasing

The high reflectance of mineral wool board can decrease the electric power cost indirectly. The rate can reach 18%-25%.

The performance of heat preservation and heat insulation can decrease the costs of refrigeration and heating greatly and the rate can reach 30%-45%.


Patterns:Pin hole fine fissured,dune surface,sand textured,customized
Material:Wet formed mineral fiber
Surface:Vinyl latex
Color:White,black
Size:595*595mm, 603*603mm, 603*1213mm, 600*1200mm, customized
Thickness:6-20mm
Edge:Square, Tegular, Micro, Concealed
NRC:0.4-0.6
Fire Resistance:Class 0/ Class 1-BS 476
Light Reflentance:0.80-0.95
Humidity Resistance(RH):80%-95%
Environmental protection:Non-asbestos, NO formaldehyde



Introduction

Mineral fiber ceiling board

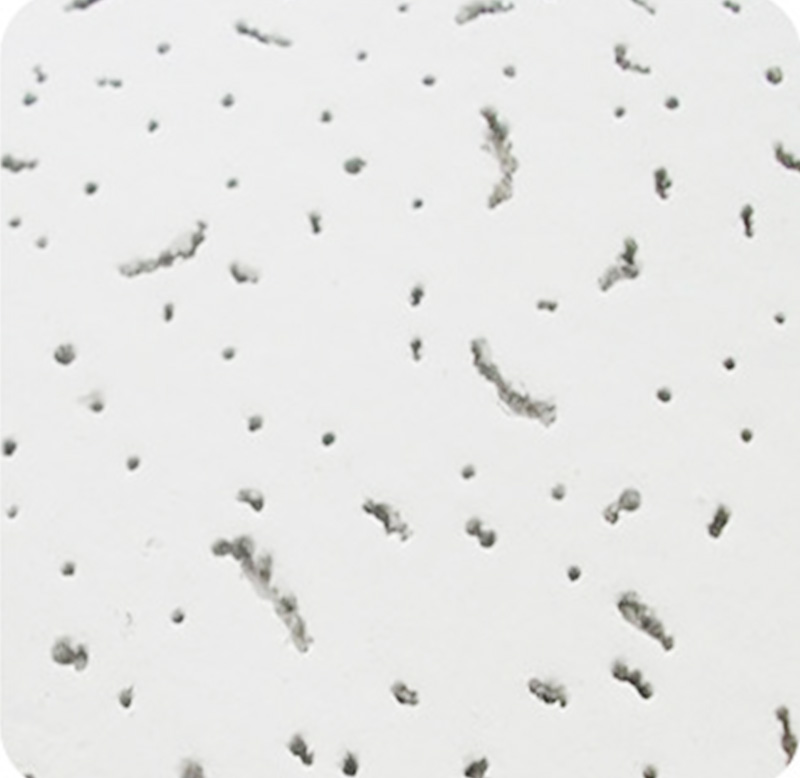

Mineral fiber ceiling board generally refers to mineral fiber decorative sound absorbing panels. It is made of granulated cotton as the main raw material and added with other additives by high-pressure extrusion cutting. It does not contain asbestos and has good fireproof and sound-absorbing properties. The surface generally has a variety of pores, commonly known as caterpillars and other patterns, the surface can be painted with a variety of color paste, usually white is the most used.



Advantages

1.The mineral wool board is made of high-quality mineral wool as the main raw material. It is 100% asbestos-free and does not have needle-like dust. It will not enter the body through the respiratory tract and is harmless to the human body.

2.The use of composite fiber and mesh structure base coating greatly improves the impact resistance and deformation resistance.

3.The internal structure of the mineral wool board has a three-dimensional cross-network structure, and the internal space is sufficient and the structure is firm, which greatly improves the sound absorption and noise reduction capability.



Main functions

1.Sound absorption: The mineral wool board uses mineral wool as the main raw material, mineral wool has developed micropores, when the sound waves hit the surface of the material, some of which are reflected back, some are absorbed by the plate, and some pass through the plate into the back cavity, greatly reducing the reflection and noise.

2.Noise reduction: The mineral wool board is a porous material, which consists of a number of micropores, which reduce the reflection of sound waves, eliminate echo, and isolate the noise transmitted by the floor.

3.Fire resistance: Raw material mineral wool is not flammable, thus effectively preventing the spread of fire.



Where can (insert product title here) be used?

This ceiling tile could be widely used for schools, corridors, lobbies & reception areas, administrative & traditional offices, retail stores, galleries & exhibit spaces, mechanical rooms, libraries, warehouses, etc.



Specifications


Material Wet-formed   mineral fiber
Surface coatingHigh quality   factory-applied latex paint
ColorWhite
size(mm)BTU unit,Watts   unit
Density240-300kg/m3
Light   ReflectanceMinimumLR0.83*
Edge detailSquare   lay-in/Tegular
Surface patternRefer to the   specification sheets and the customer's requirement
Moisture   Content(%)1.5
NRC0.55
Fire performanceEN13964:2004/A1:2006
CACMinimum 33*/35*
Warranty5-year limited warranty
InstallationMatch with   T-Grids/T-bar or other ceiling suspension systems. Main Tee, Cross Tee, Wall   Angle



How to use

1.Base cleaning: The base layer is required to be flat and free of impurities, mainly for all installations that may affect the construction of the mineral wool panel ceiling.

2.Elastic line: According to the ceiling of the mineral wool board, the standard height ceiling line is used as the standard line for the installation of the ceiling of the mineral wool board.

3.Installation of the boom: According to the requirements of the construction drawings, determine the position of the boom, install the embedded parts of the boom, brush the anti-rust paint, and the boom is made of steel bars with a diameter of 8 and the spacing between the lifting points is 900-1200mm. During installation, the upper end is welded to the embedded part, and the lower end is spliced to the hanging piece.

4.Install the main keel, the secondary keel, and the side keel. When installing the main keel (usually C38 keel), the main keel hanging piece should be connected to the main keel, tighten the screw, and hang the arch 1/200 according to the requirements, and check the keel flatness at any time. The main keel of the room is arranged along the long direction of the lamp, pay attention to avoid the position of the lamp; the main keel in the corridor is arranged along the short direction of the corridor. The matching secondary keel is generally made of painted T-shaped keel. The spacing is the same as the transverse dimension of the plate. The secondary keel is hung on the big keel through the hanging piece. The L-shaped side keel is used, and the wall is fixed with a plastic expansion tube or a self-tapping screw, and the fixed spacing should be 200 mm.

5.Concealed inspection: After the installation of water and electricity, water testing, and pressure suppression, the keel should be concealed and inspected. After the inspection is completed, the next process can be entered.

6.Installation of mineral wool board and veneer: The specifications and thickness of mineral wool board should be determined according to the specific design requirements, generally 600*600*15. Operators must wear white gloves when installing mineral wool panels to avoid contamination.



Cautions for use

1.The various pipelines, doors, windows and glass in the ceiling should be installed, and the water and sewage pipelines should be under pressure after construction.

2.For the production date shown on the outside of the package, one room should be made of the same date.

3.Wear cleaning gloves to prevent soiling.

4.After the end, please pay attention to ventilation, and close the doors and windows in case of rain.

5.Within 72 hours after the construction of the composite pasteboard, there shall be no strong vibration before the glue is completely cured.



Manufacturing process

The production process of mineral wool decorative sound absorbing panels is relatively complicated. At present, there are mainly wet long net copying, wet round net copying, dry laminating and molding, semi-drying, etc. Most of the current manufacturers adopt wet process. It is formed by wet long net copying, through pulping, long net copying, dewatering, slitting, drying, slitting, spraying and finishing.



What are the raw materials?

1.Industrial waste. It belongs to alkaline industrial waste slag, such as blast furnace slag, steelmaking slag, ferroalloy slag, colored smelting furnace slag, etc.; it belongs to acid industrial waste slag, such as red brick slag, iron slag, fly ash, cyclone slag and so on.

2.Some igneous rocks. Such as basalt, diabase, gabbro, granite, diorite, quartzite, andesite, etc., these rocks are acidic

3.Flux. Such as limestone, dolomite, etc., they are all alkaline fluxes.
